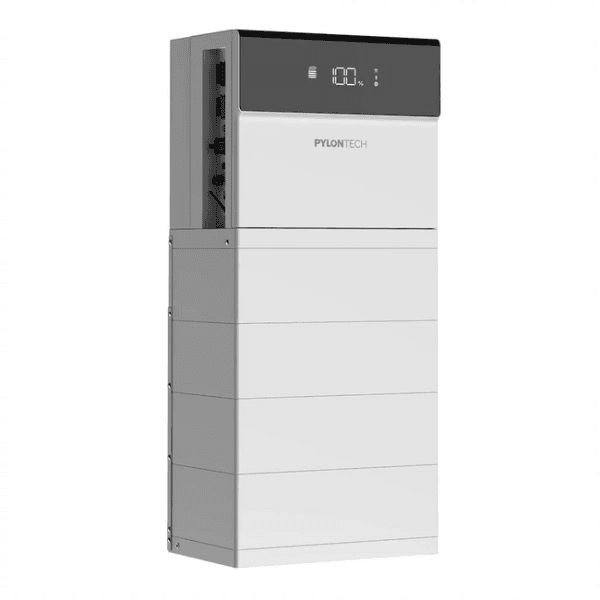

Pylontech Force H3X 10kW + 20kWh All-in-One 3-Phase Hybrid

Pylontech Force H3X All-in-One 10kW + 20kWh

This pre-configured bundle consists of 1x PYL-FH3X10K-HY-3P inverter and 4x PYL-FORCEH3-UNIT battery modules, providing 10kW of power and 20kWh of energy storage. Built on a modular and scalable platform, the H3X series lets you start with smaller storage and grow each tower to a maximum of 35.8 kWh. When higher capacity is needed, multiple towers can be connected in parallel to reach a total storage capacity of up to 210 kWh, making the system adaptable for both residential use and larger, expandable energy storage projects.

Safe and Durable LiFePO4 Chemistry

The Force H3X uses lithium iron phosphate (LiFePO4) battery cells, renowned for their high safety, thermal stability, and long cycle life. It delivers over 8,000 charge cycles at 95% depth of discharge (DoD), allowing you to fully utilize the available capacity every day. This makes the system perfectly suited for intensive daily cycling with maximum energy draw.

Effortless Plug-and-Play Setup

Thanks to the efficient plug-and-play design, no cables are needed between battery modules. This cuts installation time to roughly 15 minutes, offering significant time savings for professional installers. The system also achieves a high round-trip efficiency of up to 97%, ensuring optimal energy transfer and minimal losses.

Space-Saving Integrated System

The H3X integrates the Battery Management System (BMS), hybrid inverter, and Energy Management System (EMS) into one slim, vertical enclosure. This compact form factor simplifies integration into different spaces while supporting both single-phase and three-phase connections for broad compatibility. An AI-driven dynamic control system continuously analyzes consumption and production patterns to optimize performance, maximize safety, and improve overall energy management.

Indoor and Outdoor Flexibility

With an IP55 rating, the H3X is resistant to dust and water splashes, allowing for installation indoors or in covered outdoor areas. This gives installers greater freedom to choose the optimal location for the system based on site conditions.

* The maximum depends on the inverter

Documents

• 📄 AA) Datasheet Pylontech FH3X5K-HY-1P 250902 EN
• 📄 AA) Datasheet Pylontech Force H1 H2 H3 EN
• 📄 AB) Installation Manual Force H3 +Wi-Fi_Portal EN
• 📄 AB) Installation Manual Force H3 EN
• 📄 AB) Installation Manual Force H3 EU V1.1 20240925 EN
• 📄 AB) Manual FH3X-Pylontech-SOP V1.0 EN
• 📄 AB) Manual FH3X-PylontechPro-SOP V1.0 EN
• 📄 AB) Manual FH3XxxK-HY-1P V1.7 20250825 EN
• 📄 AB) Quick Guide FH3XxxK-HY-1P V1.11 20250818 EN
• 📄 AC) Warranty Certificate Pylontech Force H3X
• 📄 AC) Warranty Pylontech Force H1 H2 H3 series EU V1.2 20241101 EN
• 📄 AD1) EN50549-1 50549-10 Pylontech FH3X-xxK-HY-1P
• 📄 ADZ) 62040-1E UPS Certificate Pylontech FH3X-xxK-HY-1P
• 📄 ADZ) Certificate FORCE-H3-EMC_64.771.23.60365.01 cert
• 📄 ADZ) Certificate FORCE-H3-IEC62040_64.290.23.31019.01 CERT_B
• 📄 ADZ) Certificate FORCE-H3-IEC62040_64.290.23.31019.01 CERT_N8A
• 📄 ADZ) Certificate FORCE-H3-IEC62619_64.280.23.60422.01 CERT
• 📄 ADZ) Certificate FORCE-H3-IEC63056_64.280.23.60362.01 CERT
• 📄 ADZ) Certificate FORCE-H3-UL1973_5011347-2306A0921SHA-001_atm
• 📄 ADZ) Certificate FORCE-H3-UL9540_ATM for Report 2311A1428SHA-001
• 📄 ADZ) Certificate FORCE-H3-VDE2510-50_64.280.23.60363.01 CERT
• 📄 ADZ) certificate UN38.3 – Pylontech PYL-FORCEH3-UNIT (FH10050)
• 📄 ADZ) IEC 62109-1 Certificate Pylontech FH3X-xxK-HY-1P
• 📄 ADZ) IEC 62109-2 Certificate Pylontech FH3X-xxK-HY-1P
• 📄 ADZ) Product Carbon Footprint Verification Statement Pylontech Force H3
• 📄 AE) DGD Pylontech FORCEH3-UNIT FH10050 2025
• 📄 AE) MSDS – Pylontech PYL-FORCEH3-UNIT (FH10050)
• 📄 AE2) Battery Compatibility Pylontech V2.33 20241030 EN
