Name: Peblar Business 22kW EV Charger Socket Eichrecht MID - SolarSupplier
SKU: PEB-LP-Bus-Sock-Eich-BDL-100
Price: 1480.05 EUR
Availability: InStock

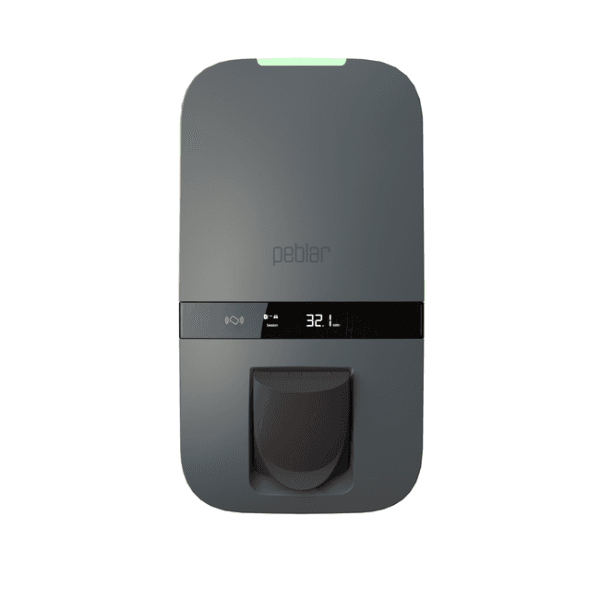

Peblar Business 22kW Socket Charging Station (6004-2304-4801)

The Peblar 6004-2304-4801 is a professional-grade 22kW AC charging station with a Type 2 socket, engineered for locations where transparent and legally compliant billing is mandatory. It is fully Eichrecht-certified and equipped with a MID-certified energy meter, ensuring that every charging session is recorded securely, verifiably, and in full compliance with legal standards. This makes it the perfect choice for semi-public and commercial environments.

Beyond its billing capabilities, this station offers advanced connectivity and smart energy features. It supports the OCPP 1.6-J protocol via Ethernet, WiFi, or mobile network (2G/4G) for seamless integration with back office and billing platforms. Dynamic load balancing is supported through CT clamps or a P1 connection, optimizing the use of available electrical capacity. The station is prepared for solar charging and includes an RFID tag for user access control. Its IP54-rated enclosure ensures reliable operation in both indoor and outdoor settings, and it can be mounted on a wall or pole.

Key Features at a Glance

Charging Power: 22kW (3-phase)
Connector: Type 2 socket (no attached cable)
Metering: MID-certified energy meter for legal billing
Certification: Eichrecht-certified for legal compliance in Germany and Austria
Connectivity: OCPP 1.6-J via Ethernet, WiFi, and 2G/4G
Load Management: Dynamic load balancing via CT clamps or P1 interface
Authentication: RFID tag included
Smart Features: Prepared for solar charging
Enclosure: IP54 rating
Installation: Wall or pole mountable
Dimensions & Weight: 387 x 207 x 128 mm, 2.9 kg
Warranty: 3-year manufacturer’s warranty
